AWS Estate Discovery

Use this scan to build a complete picture of your AWS estate — every service, account, region and your cost profile — using native AWS APIs. No server credentials are needed. Complete all six steps below.

What you’ll have when you’re done
A collector host that can reach AWS, a read-only scan role in every target account, and AWS Config and Cost Explorer turned on so the scan returns full inventory and cost data.

Before you start — quick checklist

  • A machine inside your AWS environment to run DMC
  • Permission to create IAM roles and policies in your target accounts
  • Ability to enable AWS Config and Cost Explorer
  • The list of AWS accounts and regions you want scanned

Setup

Provide a collector host

DMC runs from a machine inside your AWS environment — usually a small EC2 instance or jump box. It runs in memory, installs nothing permanent, and stores no credentials after it closes.

Requirements:

  • Windows host you control.
  • Outbound HTTPS (port 443) to AWS service endpoints.

Create the collector identity

This is the IAM identity DMC uses to start the scan and reach into your target accounts. The simplest approach is an IAM role attached to the collector host (an EC2 instance role). Create it, then attach the policy below.

{
  "Version": "2012-10-17",
  "Statement": [
    { "Sid": "AssumeScanRoleInTargetAccounts", "Effect": "Allow",
      "Action": "sts:AssumeRole",
      "Resource": "arn:aws:iam::*:role/<SCAN_ROLE_NAME>" },
    { "Sid": "ResolveRegionsForDiscovery", "Effect": "Allow",
      "Action": "ec2:DescribeRegions", "Resource": "*" },
    { "Sid": "ListOrganizationAccounts", "Effect": "Allow",
      "Action": "organizations:ListAccounts", "Resource": "*" }
  ]
}

Replace <SCAN_ROLE_NAME> with the name you’ll use in step 3.

Create a scan role in each target account

In every AWS account you want to scan, create an IAM role with the same name (the one from step 2). This role gives DMC read-only access to inventory your resources, RDS and S3, AWS Config records, and Cost Explorer. Attach the permissions policy and the trust policy below.

Permissions policy:

{
  "Version": "2012-10-17",
  "Statement": [
    { "Sid": "ValidateCallerIdentity", "Effect": "Allow",
      "Action": "sts:GetCallerIdentity", "Resource": "*" },
    { "Sid": "DiscoverEc2", "Effect": "Allow",
      "Action": ["ec2:DescribeInstances","ec2:DescribeRegions",
                 "ec2:DescribeVolumes","ec2:DescribeInstanceTypes"],
      "Resource": "*" },
    { "Sid": "ReadCloudWatchMetrics", "Effect": "Allow",
      "Action": "cloudwatch:GetMetricData", "Resource": "*" },
    { "Sid": "ListS3Buckets", "Effect": "Allow",
      "Action": "s3:ListAllMyBuckets", "Resource": "*" },
    { "Sid": "InspectS3BucketConfiguration", "Effect": "Allow",
      "Action": ["s3:GetBucketLocation","s3:GetBucketVersioning",
                 "s3:GetLifecycleConfiguration","s3:GetEncryptionConfiguration",
                 "s3:GetReplicationConfiguration","s3:GetBucketPublicAccessBlock",
                 "s3:GetBucketObjectLockConfiguration","s3:GetBucketNotification",
                 "s3:GetBucketTagging","s3:GetMetricsConfiguration",
                 "s3:GetBucketWebsite","s3:GetBucketCORS"],
      "Resource": "arn:aws:s3:::*" },
    { "Sid": "DiscoverRds", "Effect": "Allow",
      "Action": ["rds:DescribeDBInstances","rds:DescribeDBClusters",
                 "rds:ListTagsForResource"], "Resource": "*" },
    { "Sid": "ReadAwsConfigInventory", "Effect": "Allow",
      "Action": ["config:DescribeConfigurationRecorders",
                 "config:DescribeConfigurationRecorderStatus",
                 "config:SelectResourceConfig",
                 "config:DescribeConfigurationAggregators",
                 "config:SelectAggregateResourceConfig"], "Resource": "*" },
    { "Sid": "ReadCostExplorer", "Effect": "Allow",
      "Action": ["ce:GetCostAndUsage","ce:GetCostAndUsageWithResources",
                 "ce:GetDimensionValues"], "Resource": "*" }
  ]
}

Trust policy (lets the collector identity assume this role):

{
  "Version": "2012-10-17",
  "Statement": [
    { "Sid": "TrustDmcCollectorPrincipal", "Effect": "Allow",
      "Principal": { "AWS": "<COLLECTOR_PRINCIPAL_ARN>" },
      "Action": "sts:AssumeRole" }
  ]
}

Replace <COLLECTOR_PRINCIPAL_ARN> with the ARN of your collector identity from step 2.

Scanning one account only?
You can give the collector identity the scan-role permissions directly and skip the assume-role step. For two or more accounts, use a scan role in each.

Turn on AWS Config

AWS Config gives DMC the full inventory of supported resource types across your estate — the backbone of estate discovery. Enable Config in each target account (or use an existing organization-wide aggregator) and confirm it is recording.

This covers compute, containers, storage, databases, networking and more — for example EC2, Lambda, ECS/EKS, EBS, S3, RDS, DynamoDB, VPCs, load balancers and CloudFront.

Required for a complete picture
Without Config recording, estate discovery returns only the resources reachable through direct APIs and your inventory will have gaps. Enable it before you scan.

Turn on Cost Explorer

Cost Explorer provides your spend and usage by account, service and region — the cost profile that makes estate discovery useful for planning and prioritisation. Enable Cost Explorer and confirm it has finished its first data refresh.

  • For a single account, enable it in that account.
  • For multiple accounts, enable it in the management/payer account for a consolidated view.

Open the port, run the scan, and confirm

Estate discovery only needs one outbound path:

From To Port
Collector AWS service APIs TCP 443

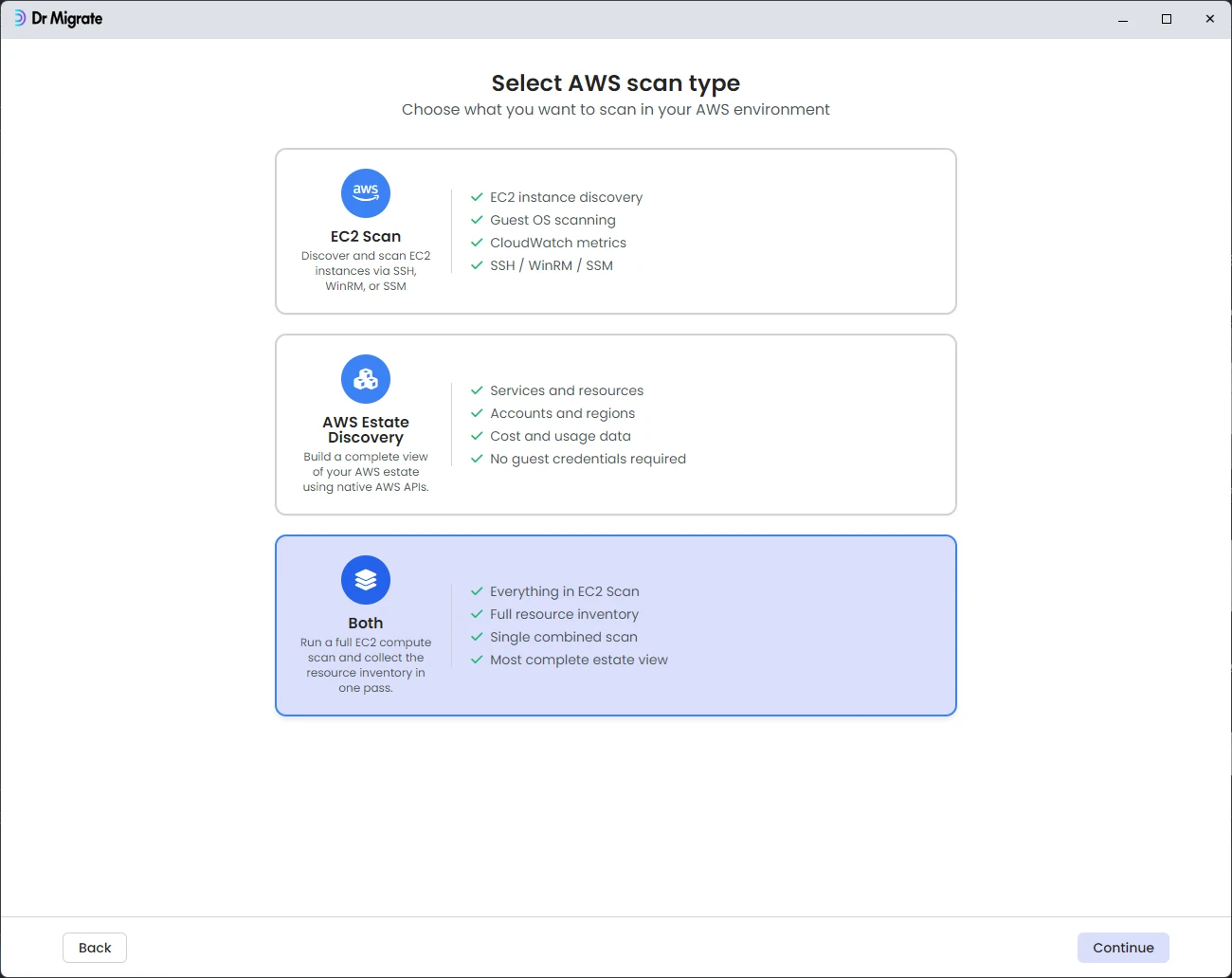

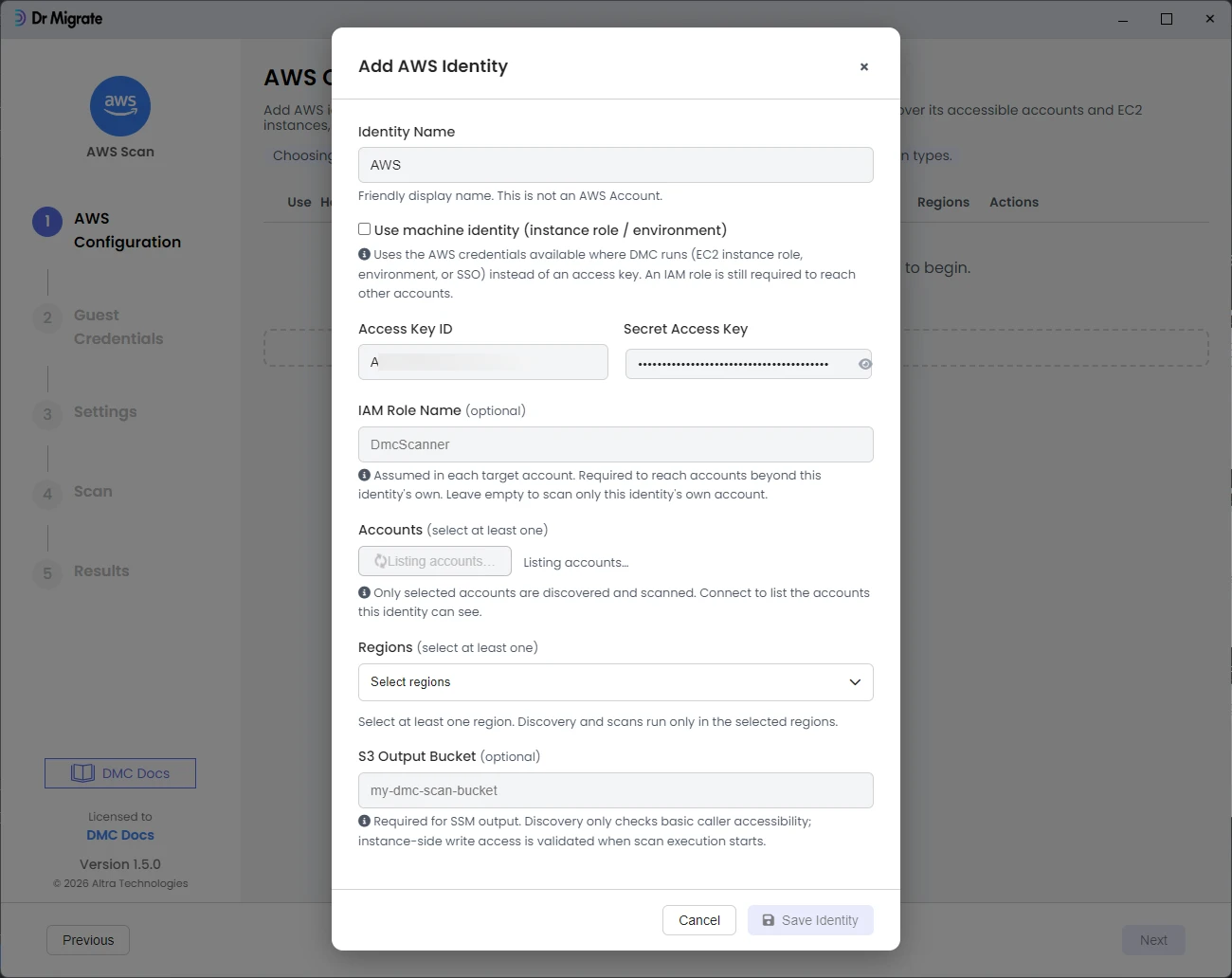

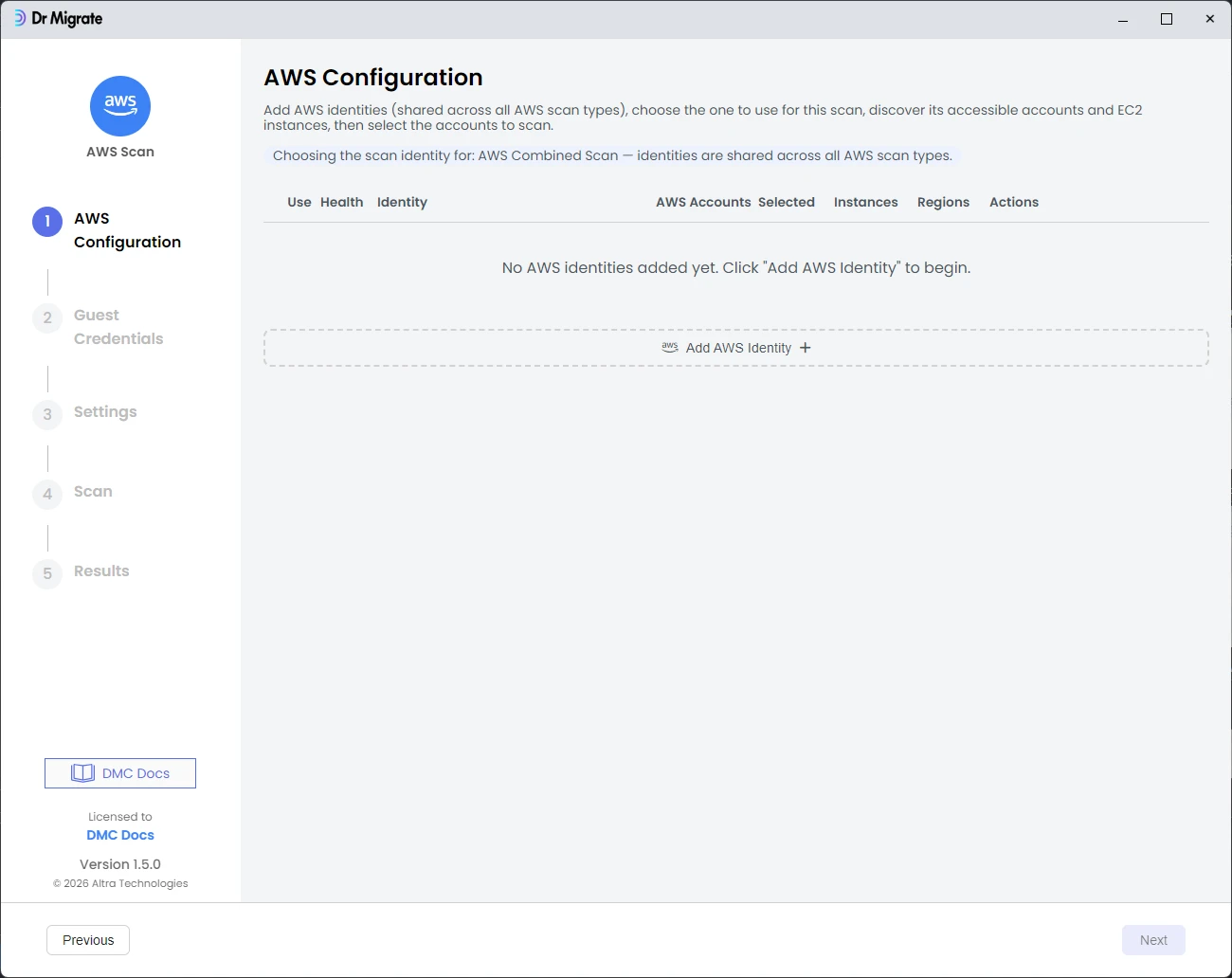

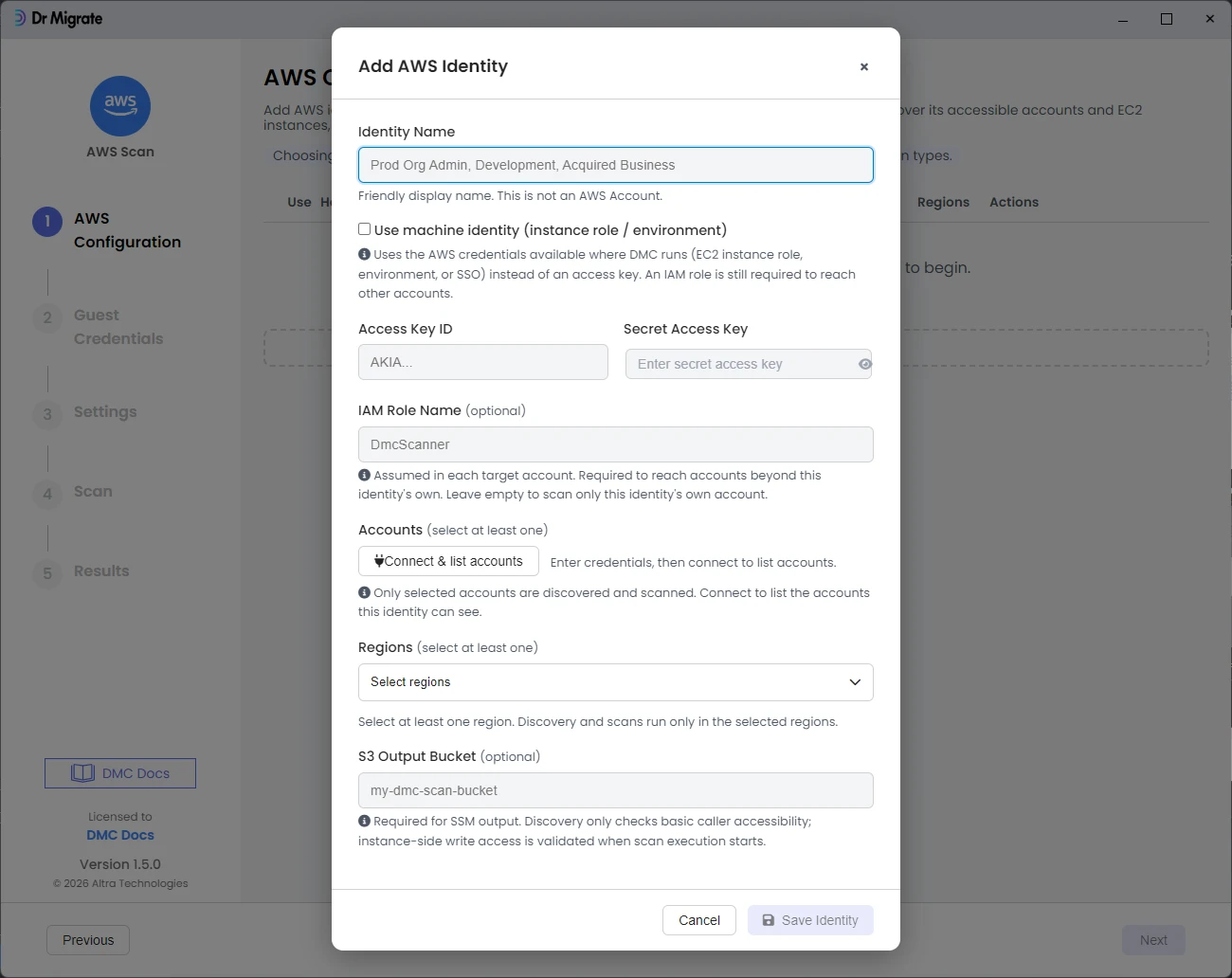

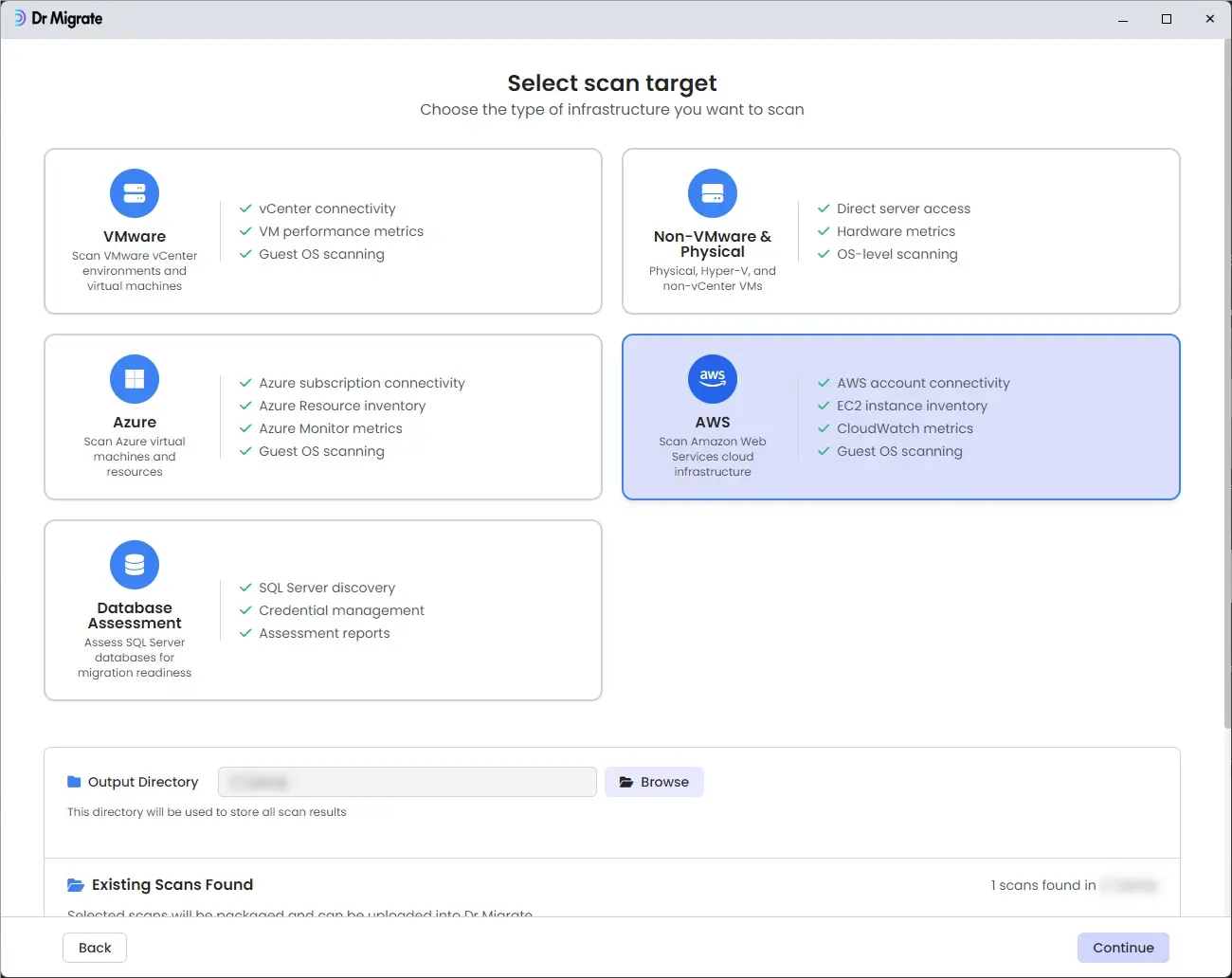

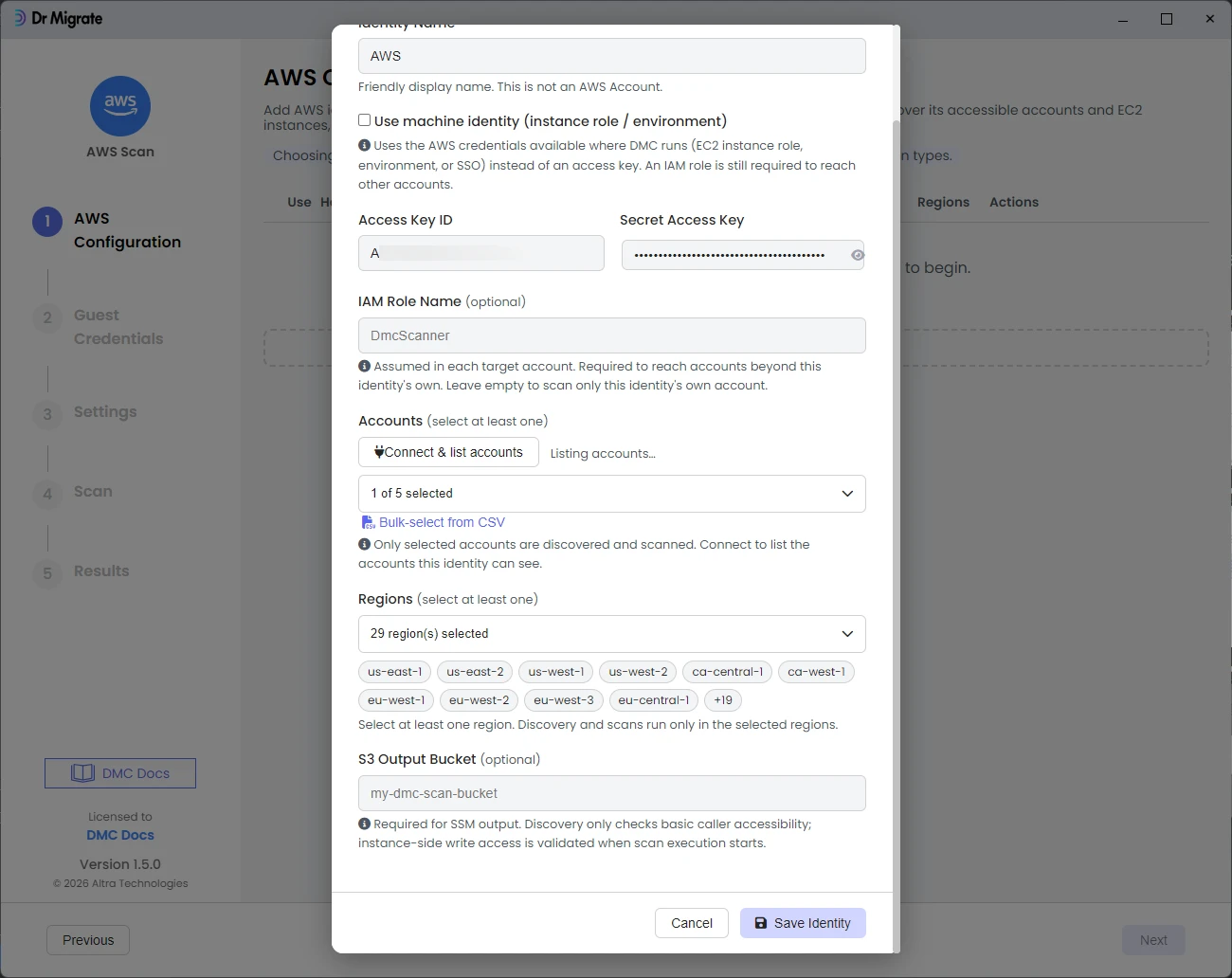

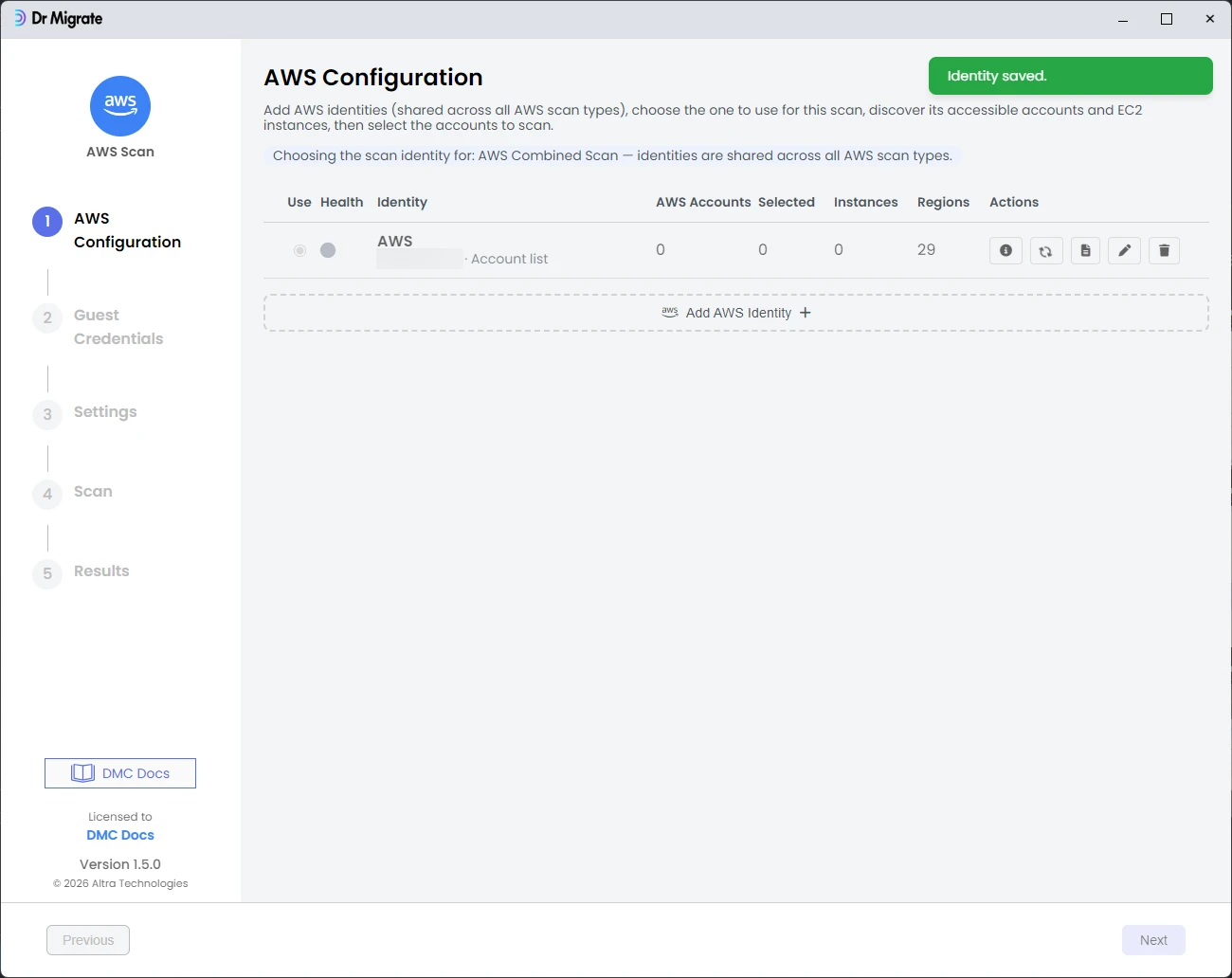

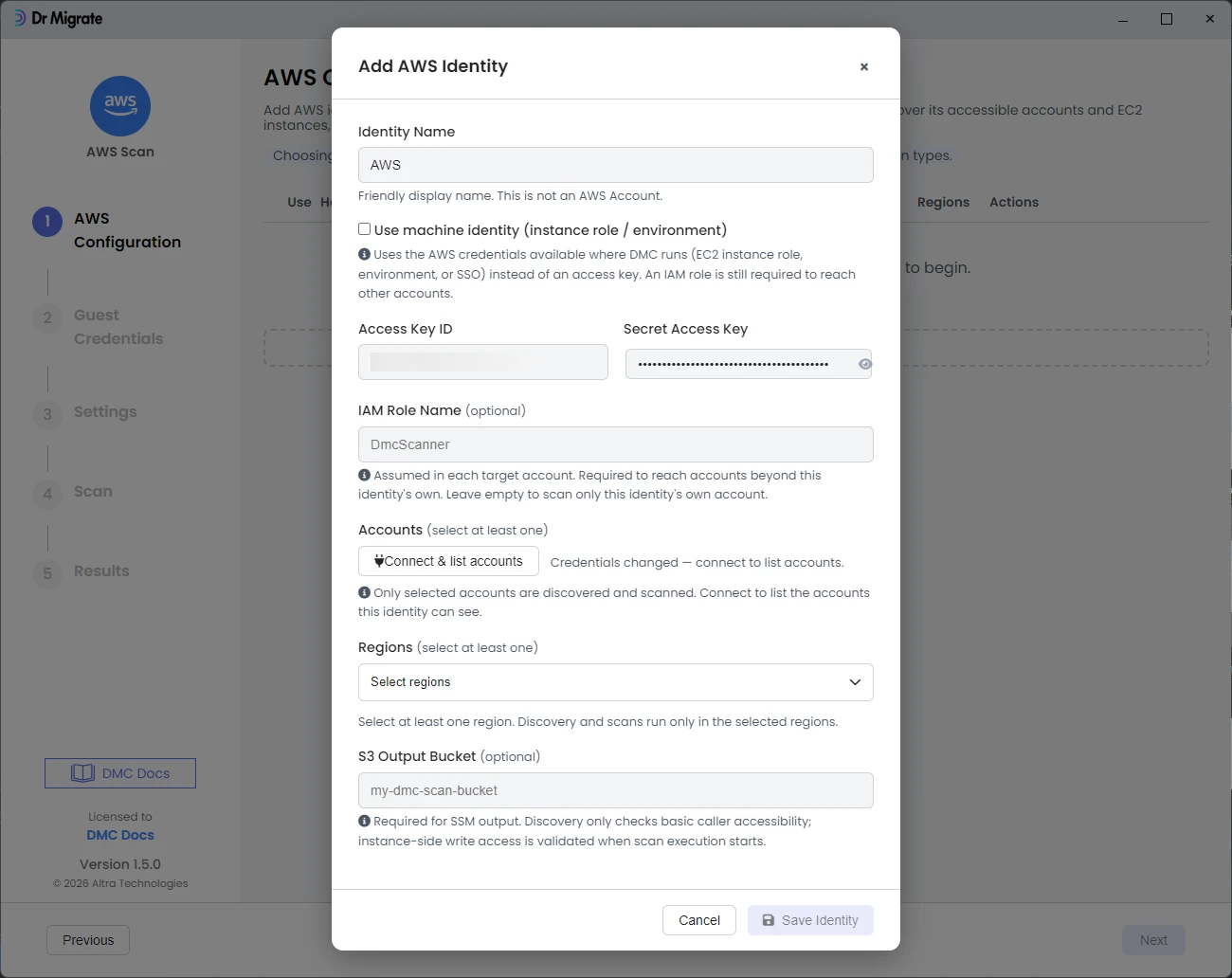

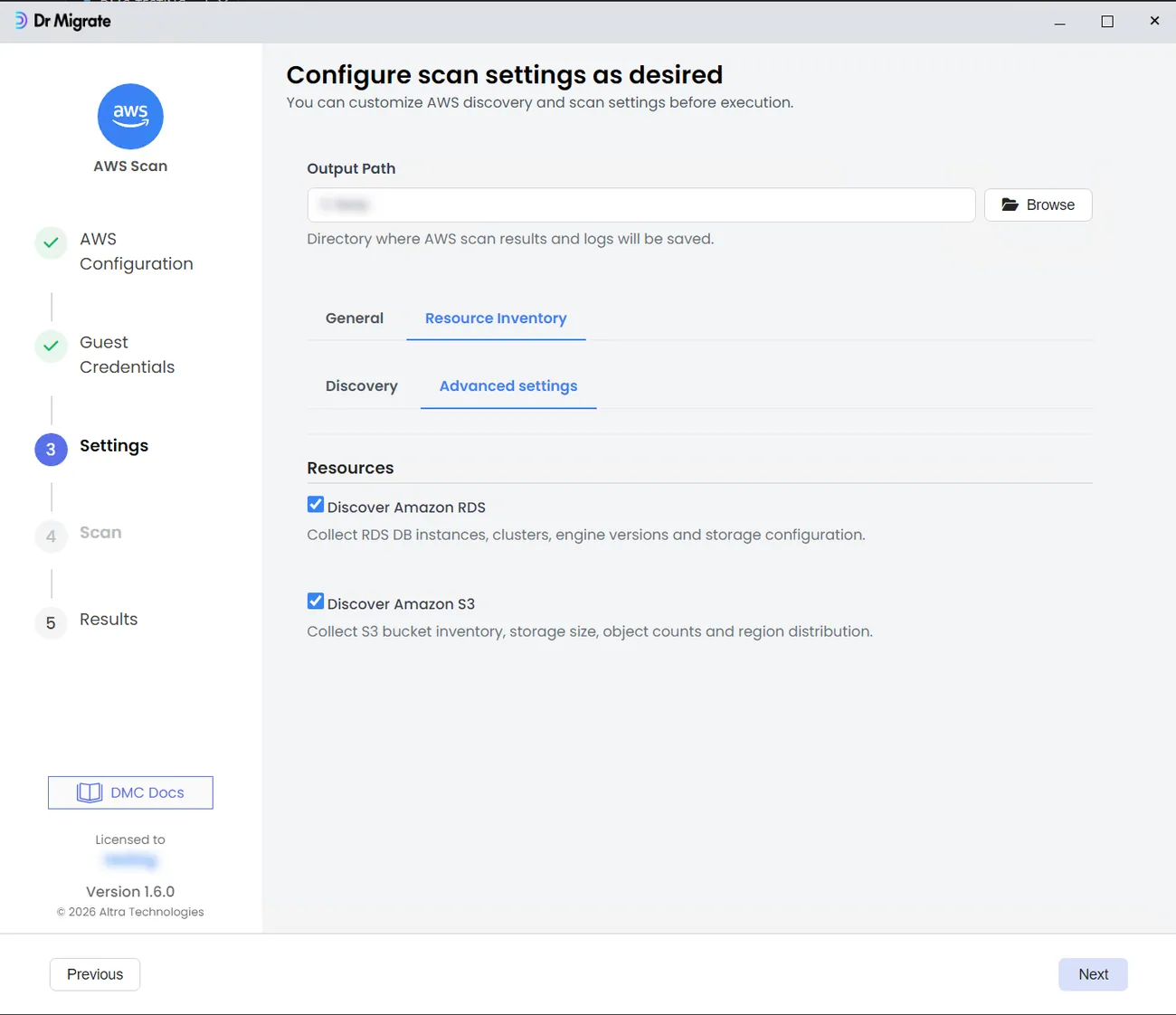

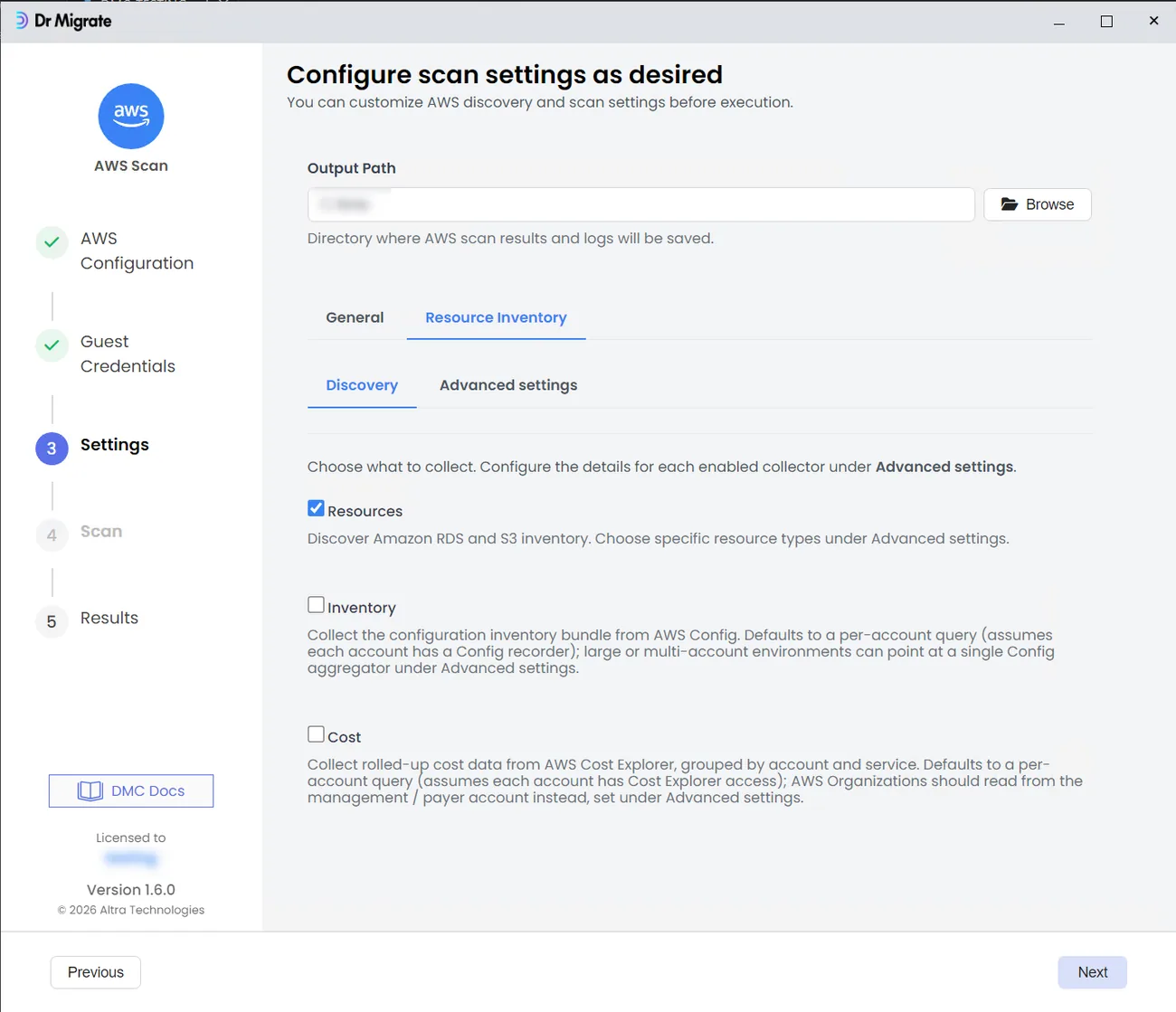

Launch DMC on the collector host, choose AWS Estate Discovery, select your accounts and regions, then run. DMC produces a password-protected ZIP — hand it to your Dr Migrate contact or import it yourself.

Before you finish, confirm:

  • The collector host can reach AWS APIs on port 443
  • The collector identity can assume the scan role with no “access denied”
  • AWS Config returns resources (not empty)
  • Cost Explorer returns cost data for the selected accounts
  • The export ZIP is created and you have its password

Permissions at a glance

Every IAM action DMC uses for estate discovery, and why. All actions are read-only — DMC reads configuration, inventory, metrics and cost data only. It never reads S3 object contents, database records or application data.

Collector identity — collector-identity-policy.json

Action What it does
sts:AssumeRole Assume the scan role in each target account
ec2:DescribeRegions Discover which regions to scan
organizations:ListAccounts List accounts when scanning an AWS Organization

Scan role — scan-role-policy.json

Action What it does
sts:GetCallerIdentity Confirm which account the scan is running in
ec2:DescribeInstances Discover EC2 instances and their details
ec2:DescribeRegions Confirm regions in the target account
ec2:DescribeVolumes Discover attached storage volumes
ec2:DescribeInstanceTypes Read instance sizing for right-sizing analysis
cloudwatch:GetMetricData Read performance and storage metrics
s3:ListAllMyBuckets List S3 buckets in the account
s3:GetBucket* / configuration reads Read bucket settings — encryption, versioning, lifecycle, public access, replication, tags and more
rds:DescribeDBInstances, rds:DescribeDBClusters Discover RDS databases and clusters
rds:ListTagsForResource Read RDS tags for ownership and cost attribution
config:Describe*, config:Select* Read the AWS Config resource inventory across the estate
ce:GetCostAndUsage, ce:GetCostAndUsageWithResources, ce:GetDimensionValues Read Cost Explorer spend and usage data

Scan role trust policy — scan-role-trust-policy.json

Action What it does
sts:AssumeRole Allow the collector identity to assume this scan role

Common issues

Symptom Fix
“AssumeRole denied” Check the scan role trust policy names the correct collector identity ARN.
AWS Config inventory empty Confirm Config is enabled and recording the resource types you expect (step 4).
Cost Explorer returns no data Confirm it’s enabled, the billing scope is correct, and the first refresh has completed (step 5).
No regions found Confirm ec2:DescribeRegions is allowed, or select regions manually.
